Honda CR500 1986-2001 Phathead cylinder head

Color
Chamber selection
Regular price $600.00 USD
Regular price Sale price $600.00 USD
Sale Sold out
Shipping calculated at checkout.

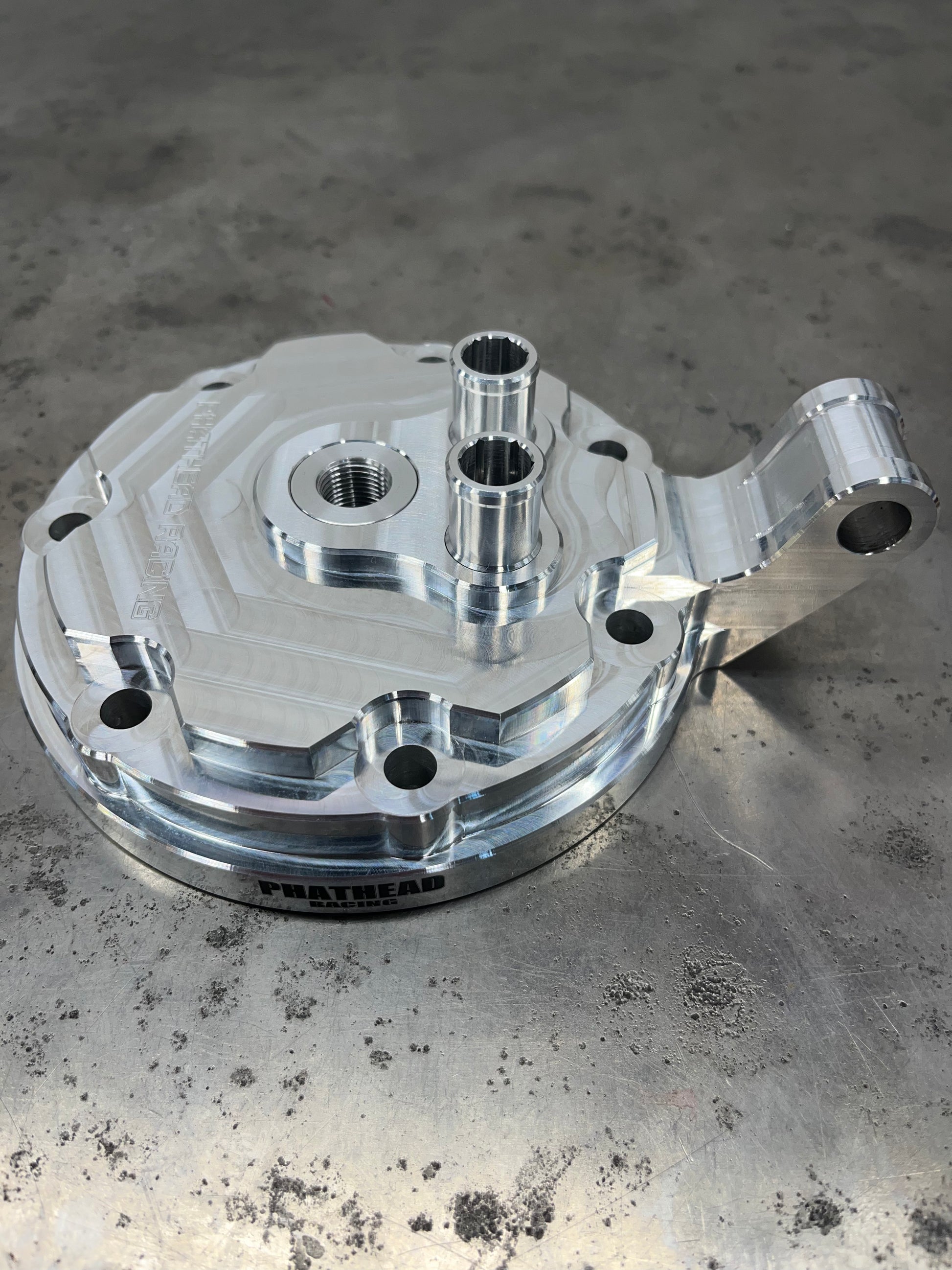

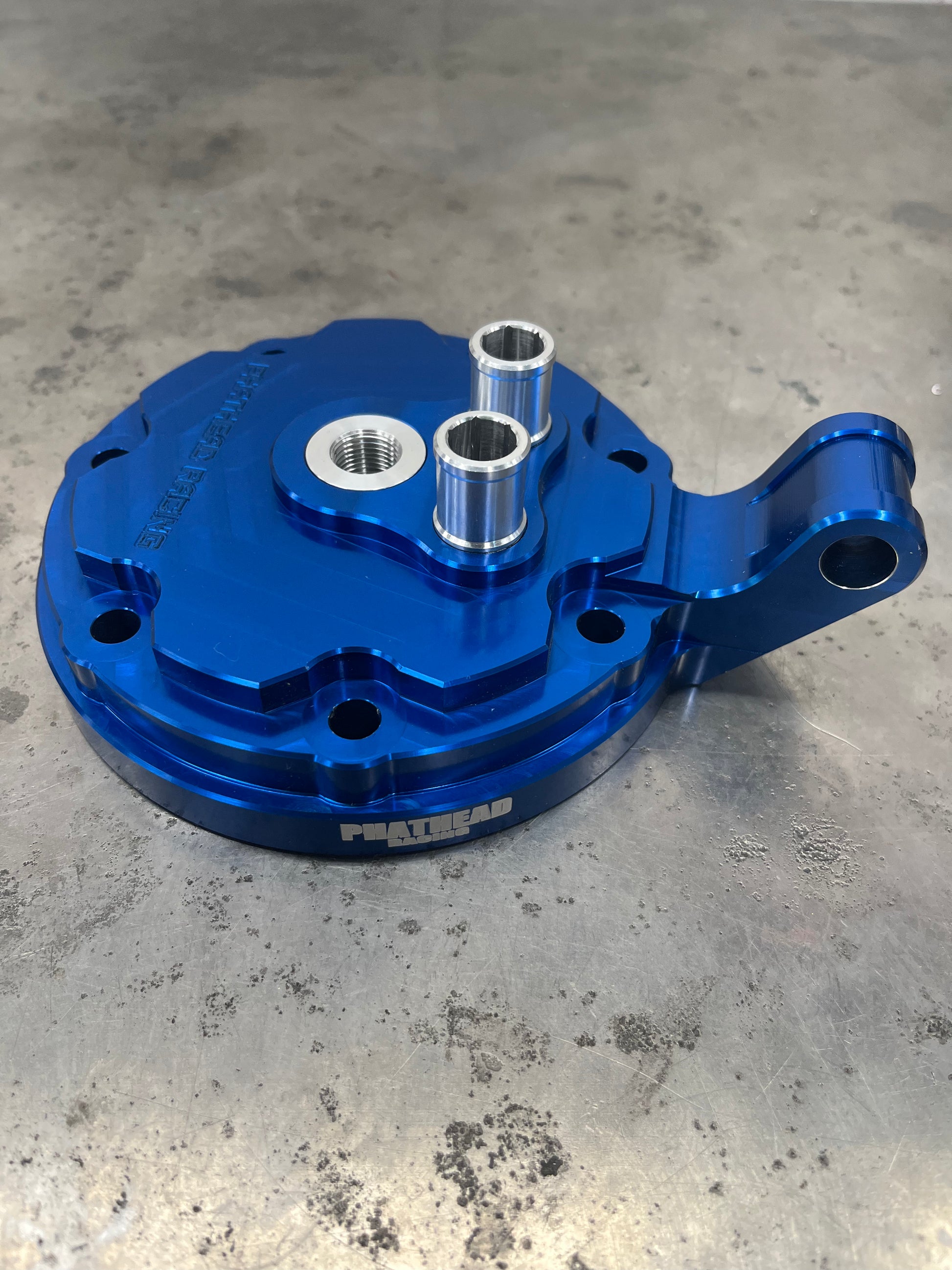

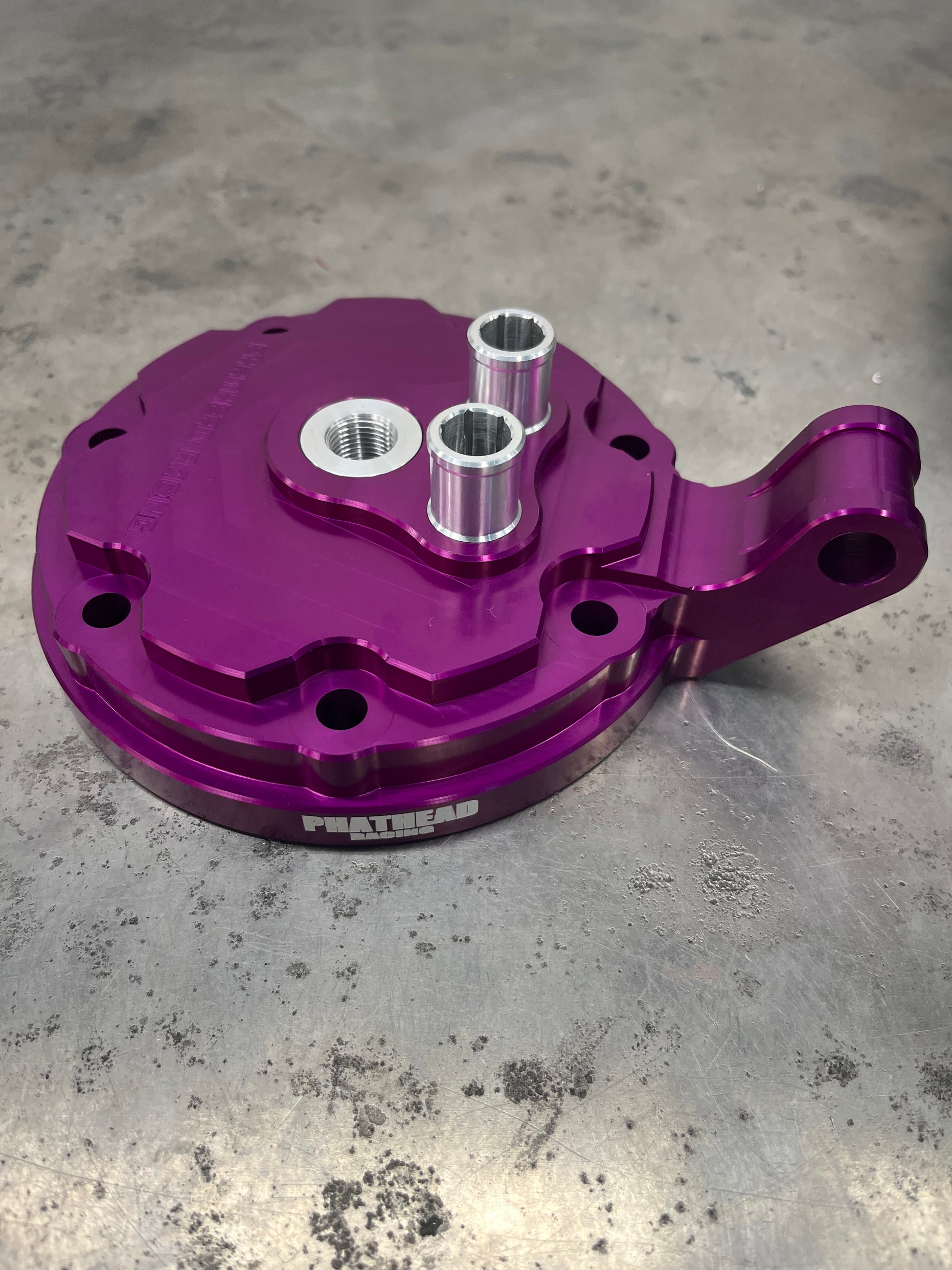

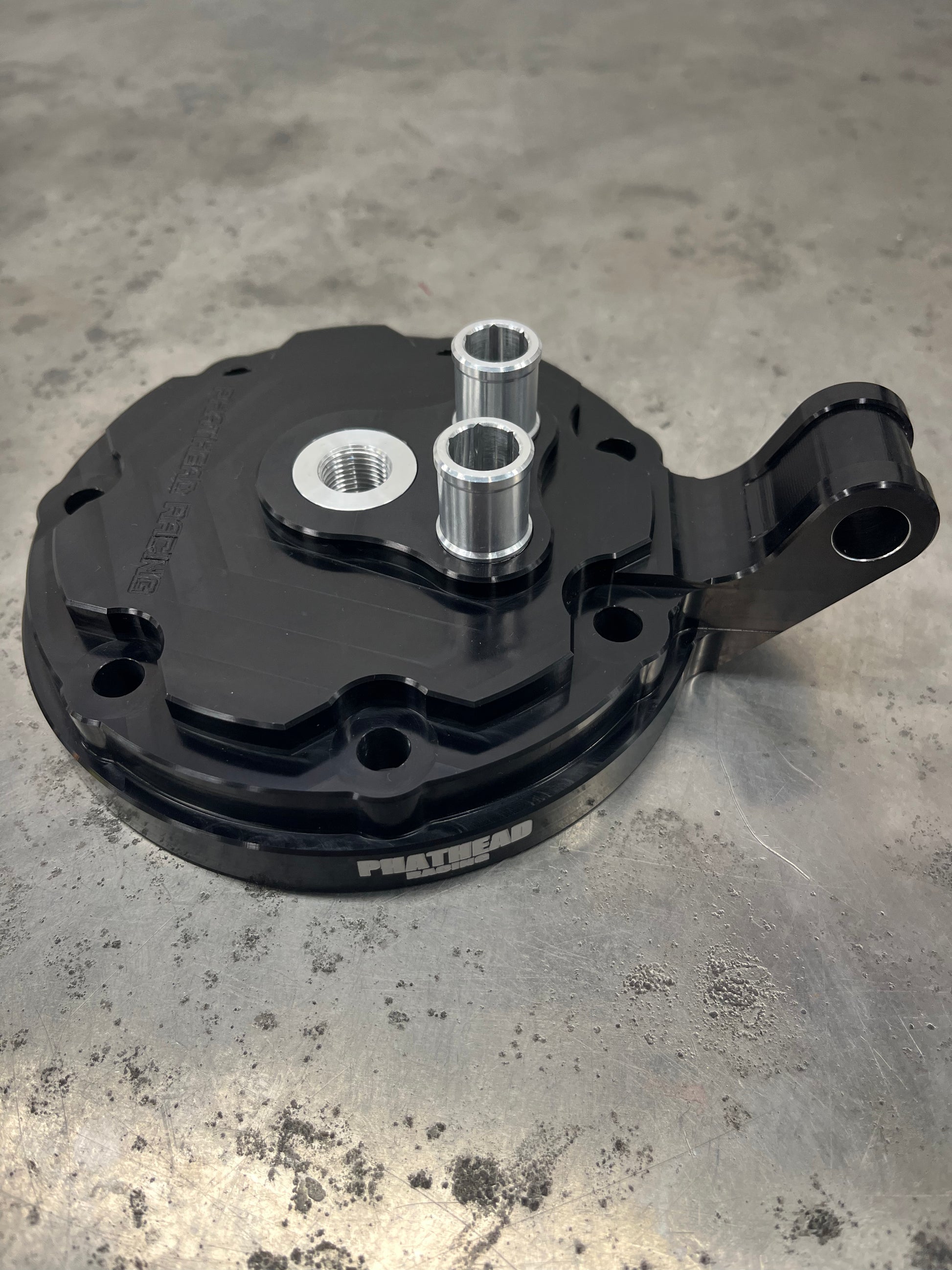

Honda CR500 Phathead cylinder head kit  1986-2001



This model does not have the compression release

Chamber selection:

HN50  -  69.6cc Stock compression
HN51  -  66.2cc (95+ octane)
HN52  -  62.4cc (100+ octane)
HN53  -  52.5cc (mod only)

Phathead Kits include a head shell with one combustion chamber, two sets of o-rings, cylinder head nuts, copper washers, some stickers for your bike and tool box and installation instructions..

Phathead cylinder heads are made of 6061 T6 billet aluminum.  The material is stronger and transfers heat better than cast aluminum.  The two piece design allows an increase in coolant flow as well as surface area which improves cooling for better consistency and performance.

The O-ring design eliminates the need to use a gasket.  You can swap chambers without the cost of replacing gaskets.

One of the main benefits of the product is the replaceable combustion chamber which are available in a range of compression options.

Suggestions : Swap chambers to adjust performance for a variety of riding conditions and track types or keep a spare in case of engine failure.
